Fuel Off-Road D891 ARC Dually 20×8.25 8×200 -201mm Offset – Rear Outer, sold as a single wheel. Tires, lug nuts and fitting are not included.
| Brand | Fuel Off-Road |
|---|---|
| Model | D891 ARC Dually |
| Diameter | 20″ |
| Width | 8.25″ |
| Bolt pattern | 8×200 |
| Offset | -201mm |
| Hub bore | 142mm |
| Part number | D89120829235 |
| Sold as | one wheel |
| Wheel weight | 47.6 lb |
| Load rating (per wheel) | 3,000 lb (1,360 kg) |
| Lip depth | 7.36 in |
| Construction | Cast Aluminum |
| Lug count | 8 |
| Finish | Polished |
| Center cap part number | 1005-30 |
| TPMS sensor compatible | Yes |
| Position | Rear only |
| Certification | SAE J2530 JWL VIA |
Specifications
Dually wheel — rear outer position. A dual-rear-wheel truck uses six wheels: 2 front, 2 rear outer and 2 rear inner. Each position is a different part number with a different offset, so order all three to match. Priced per wheel; this listing is one rear outer wheel.
Load rating is per wheel. Rear duals are balanced as pairs. Follow the installation guidelines supplied with the wheel.

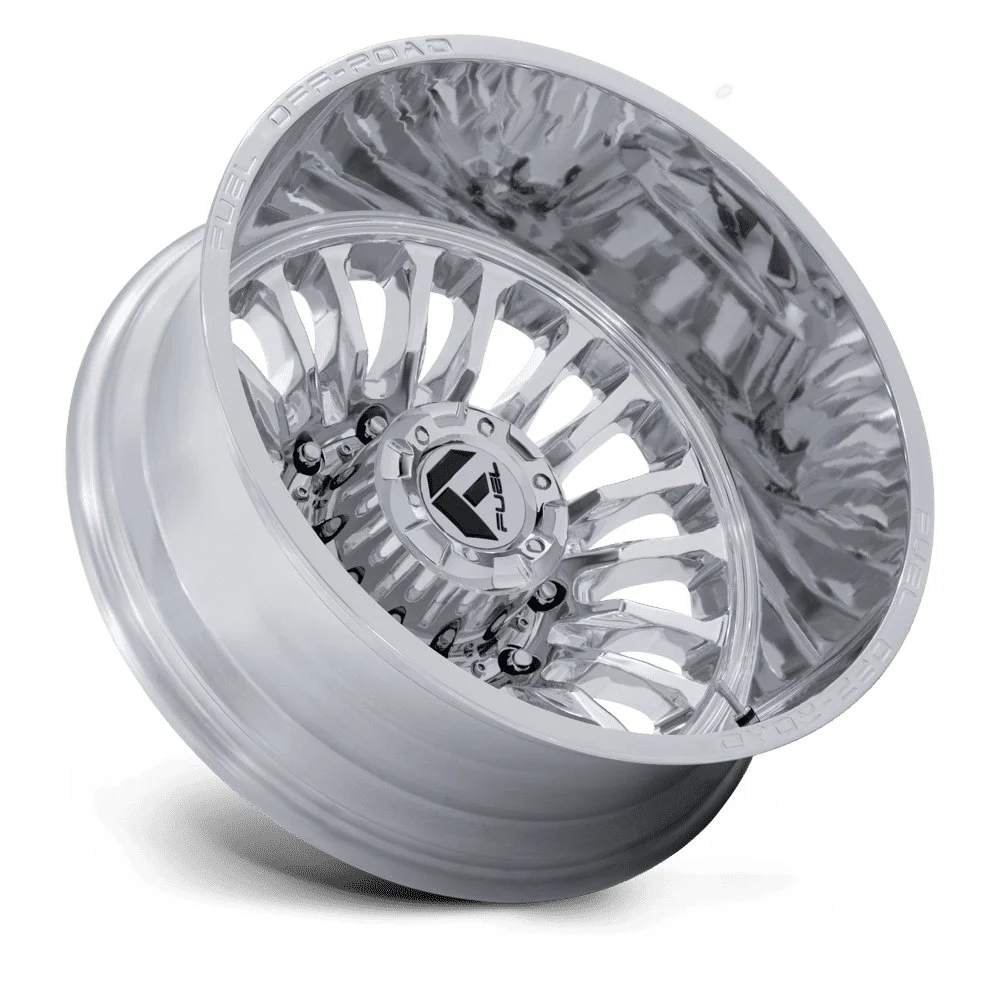

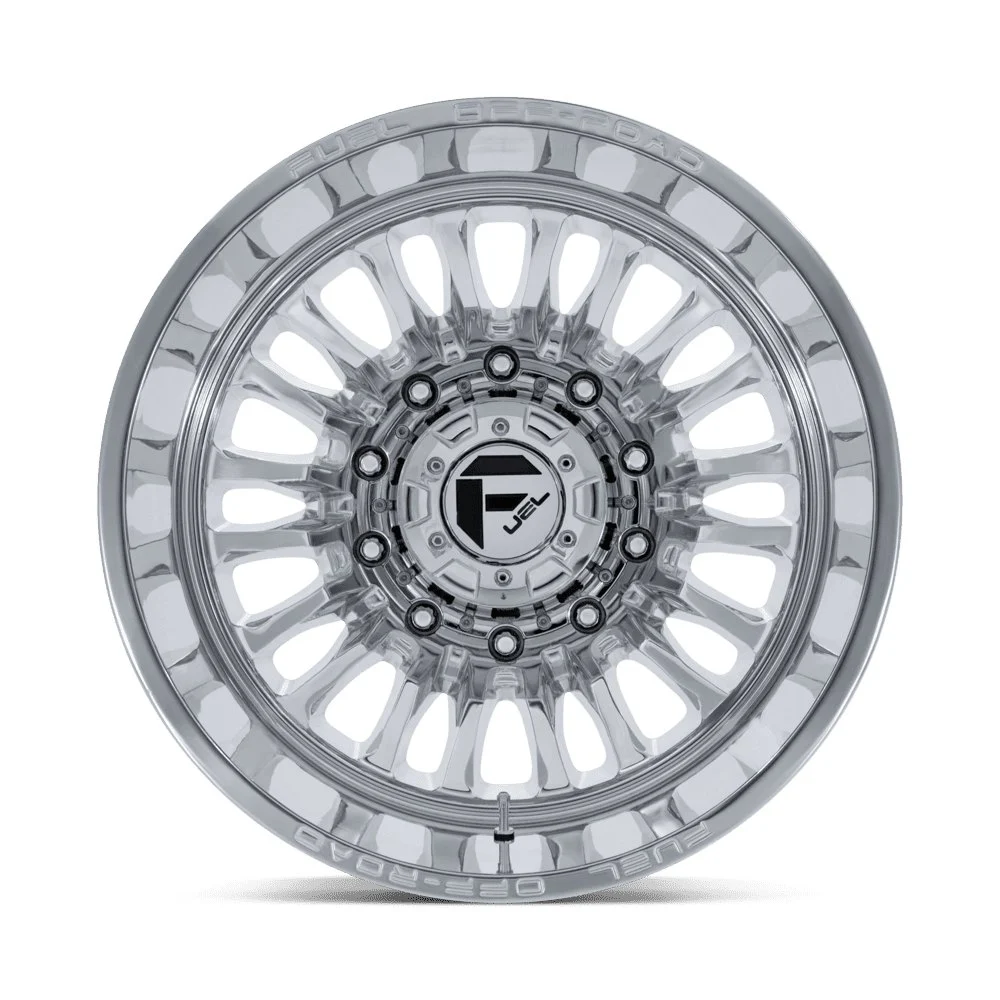

About the photograph. The manufacturer shoots one photograph per wheel style and finish and uses it for every drilling, so the number of lug holes in the picture can differ from this part. This part is 8×200.
Check the fitment numbers against your vehicle. A wheel with the right bolt pattern can still hit a brake caliper or fender on the wrong offset, and a hub bore smaller than your hub will not seat. Call us at 361-334-0324 and we will check it with you before you order.
