Fuel Off-Road D911 Circuit Dually 22×8.25 8×200 105mm Offset – Black – Front, sold as a single wheel. Tires, lug nuts and fitting are not included.
| Brand | Fuel Off-Road |
|---|---|
| Model | D911 Circuit Dually |
| Diameter | 22″ |
| Width | 8.25″ |
| Bolt pattern | 8×200 |
| Offset | 105mm |
| Hub bore | 142mm |
| Part number | D911228292 |
| Sold as | one wheel |
| Wheel weight | 47 lb |
| Load rating (per wheel) | 3,750 lb (1,700 kg) |
| Backspacing | 8.76 in |
| Lip depth | 0.96 in |
| Construction | Cast Aluminum |
| Lug count | 8 |
| Finish | Gloss Black |
| Center cap part number | 1007-85GB |
| TPMS sensor compatible | Yes |
| Certification | SAE J2530 JWL VIA |
Specifications from Wheel Pros technical data, read 2026-09-24.
Dually wheel — front position. A dual-rear-wheel truck uses six wheels: 2 front, 2 rear outer and 2 rear inner. Each position is a different part number with a different offset, so order all three to match. Priced per wheel; this listing is one front wheel.
Load rating is per wheel. Rear duals are balanced as pairs. Follow the installation guidelines supplied with the wheel.

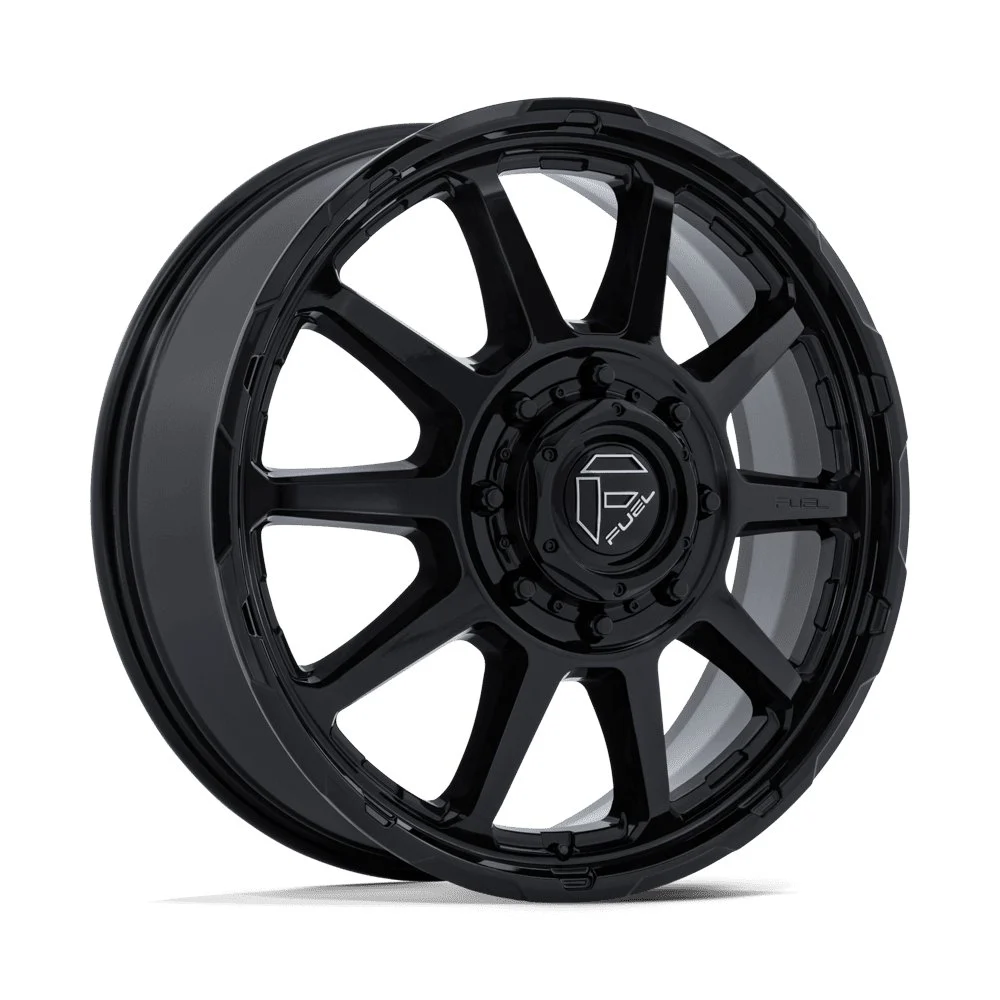

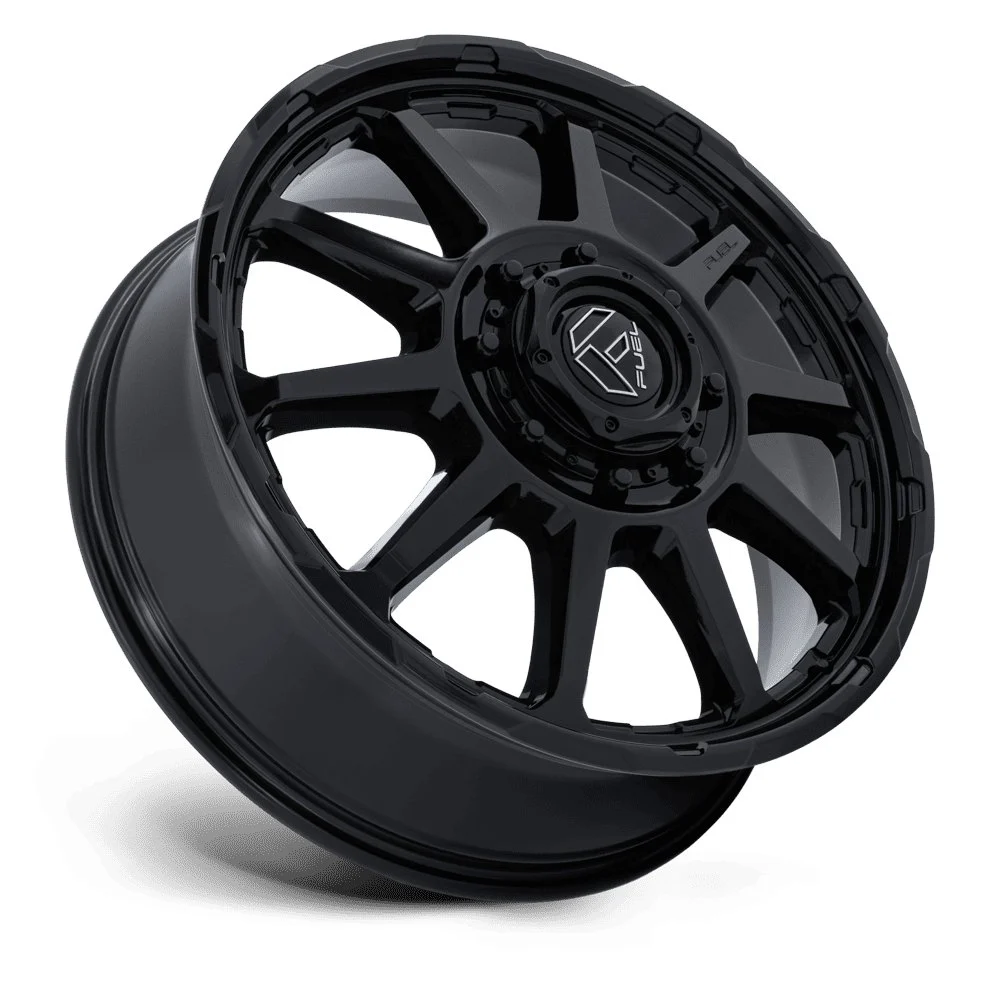

About the photograph. The manufacturer shoots one photograph per wheel style and finish and uses it for every drilling, so the number of lug holes in the picture can differ from this part. This part is 8×200.
Check the fitment numbers against your vehicle. A wheel with the right bolt pattern can still hit a brake caliper or fender on the wrong offset, and a hub bore smaller than your hub will not seat. Call us at 361-334-0324 and we will check it with you before you order.
