KMC KM239 Impact Beadlock 17×9 8×165.1 -38mm Offset – Machined, sold as a single wheel. Tires, lug nuts and fitting are not included.
| Brand | KMC |
|---|---|
| Model | KM239 Impact Beadlock |
| Diameter | 17″ |
| Width | 9″ |
| Bolt pattern | 8×165.1 |
| Offset | -38mm |
| Hub bore | 125.1mm |
| Finish | Machined |
| Part number | KM239DX17908038N |
| Sold as | one wheel |
| Wheel weight | 35.5 lb |
| Load rating (per wheel) | 4,000 lb (1,814 kg) |
| Backspacing | 3.5 in |
| Lip depth | 2.86 in |
| Construction | Cast Aluminum |
| Build | Beadlock |
| Lug count | 8 |
| Bolt pattern (inches) | 8x6.5 |
| Center cap part number | KMCAP101PXB8165SX |
| TPMS sensor compatible | Yes |
| Certification | SAE J2530 |
| DOT | Not DOT approved - off-road use |
Specifications from Wheel Pros technical data, read 2026-09-24.
Off-road use only. Beadlock wheels are sold for off-road use only and are illegal on public roads in many states. Check your local laws before you buy. We recommend a professional tire installer mount the tire and assemble the beadlock ring, following the manufacturer’s instructions supplied with the wheel, and that the ring bolts are re-checked regularly.

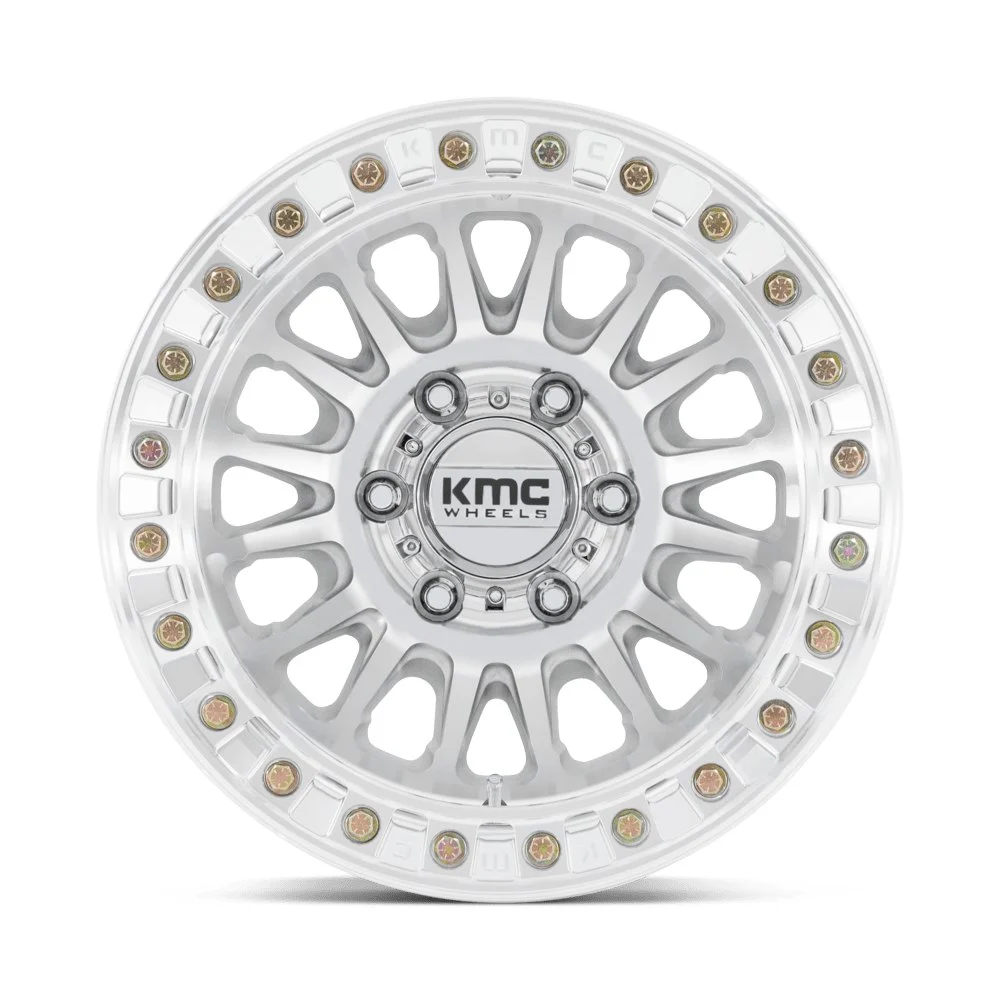

About the photograph. The manufacturer shoots one photograph per wheel style and finish and uses it for every drilling, so the number of lug holes in the picture can differ from this part. This part is 8×165.1.
Check the fitment numbers against your vehicle. A wheel with the right bolt pattern can still hit a brake caliper or fender on the wrong offset, and a hub bore smaller than your hub will not seat. Call us at 361-334-0324 and we will check it with you before you order.
