KMC KM552 IMS 20×9 8×170 18mm Offset – Matte Bronze / Gloss Black, sold as a single wheel. Tires, lug nuts and fitting are not included.
| Brand | KMC |
|---|---|
| Model | KM552 IMS |
| Diameter | 20″ |
| Width | 9″ |
| Bolt pattern | 8×170 |
| Offset | 18mm |
| Hub bore | 125.1mm |
| Finish | Matte Bronze / Gloss Black |
| Part number | KM552ZB20908718 |
| Sold as | one wheel |
| Wheel weight | 42.3 lb |
| Load rating (per wheel) | 3,700 lb (1,678 kg) |
| Backspacing | 5.71 in |
| Lip depth | 2.2 in |
| Construction | Cast Aluminum |
| Lug count | 8 |
| Center cap part number | KMCAP101MXB8170SX |
| TPMS sensor compatible | Yes |
| Certification | SAE J2530 JWL VIA |
Specifications

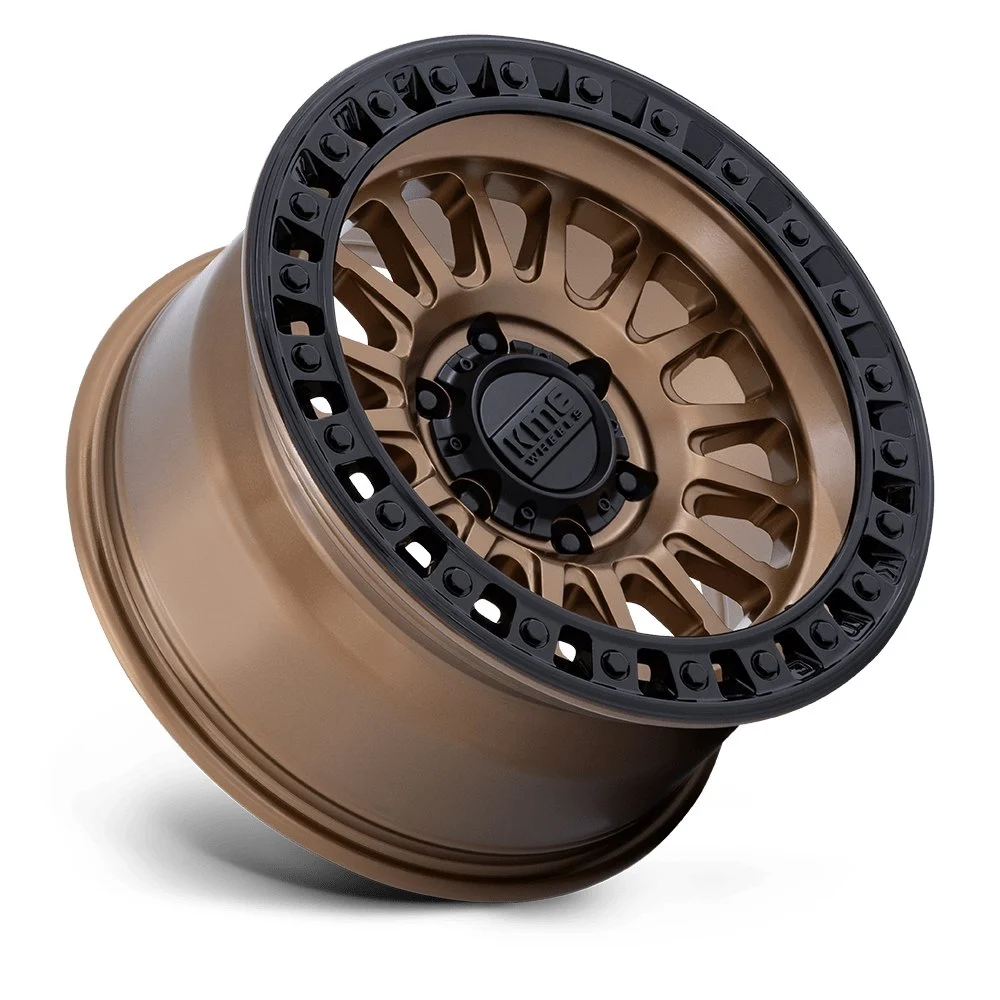

About the photograph. The manufacturer shoots one photograph per wheel style and finish and uses it for every drilling, so the number of lug holes in the picture can differ from this part. This part is 8×170.
Check the fitment numbers against your vehicle. A wheel with the right bolt pattern can still hit a brake caliper or fender on the wrong offset, and a hub bore smaller than your hub will not seat. Call us at 361-334-0324 and we will check it with you before you order.
