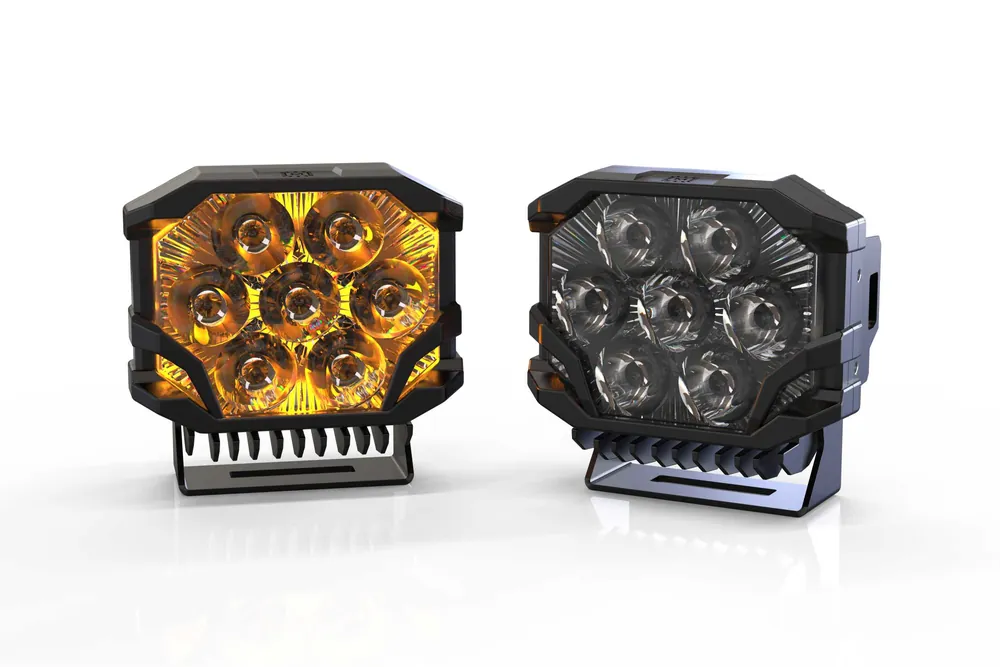

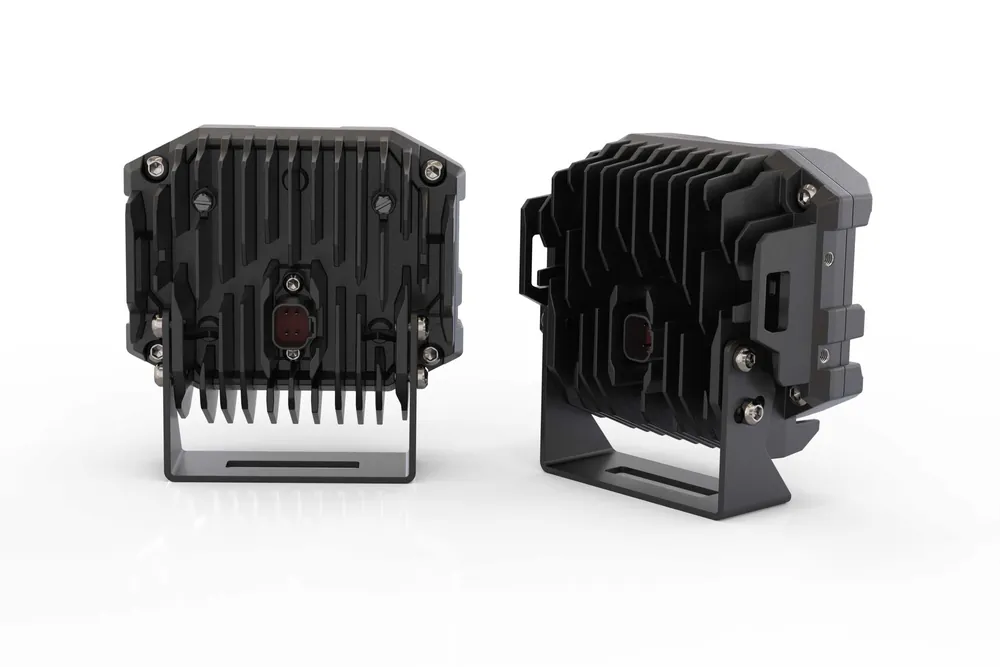

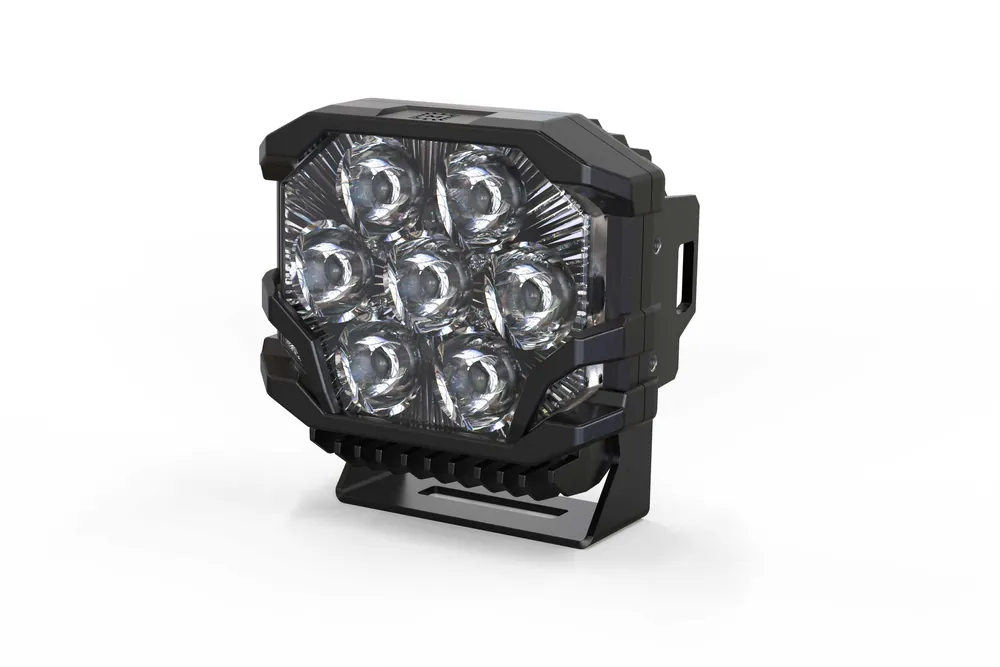

Morimoto BigBanger NCS LED Pod (Spot / White / Each)

Morimoto BigBanger NCS LED Pod (Spot / White / Each), part number BAF118, from Morimoto.

Specifications

• Intensity: 495,000 Cd (Post Warm-Up) (4,950 lux @ 10m)
• Input Voltage: 9-18V DC
• Input: Integrated Deutsch DT 4-Pin
• Power (Stabilized): 36.5w, 30w (Backlight), 8w (Dim Backlight)
• Current (@ 13.5V DC): 2.74A (Stabilized), 3.33A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)
• Peak Luminosity (lm)(raw): 3,150lm
• Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
• Light Source: 7x Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP RATING: IP69K (Dust / High Pressure Water Resistant)

In the box

• LED Pod: 1x Morimoto BigBanger NCS Spot (White) (Sold Each)
• Bracket: 1x Universal Bottom Mount U Bracket
• Hardware: Complete pack (stainless steel)

Compatibility, as listed by Morimoto

• Universal: With Included U Brackets

Check your vehicle against this list before you order. Questions about fit? Call (361) 334-0324.

Shipping. This ships direct to you from the warehouse. Inspect the shipment before you accept it – if it arrives damaged, note the damage with the driver and call us at (361) 334-0324.
