Rotiform R170 DTM 17×8 4×100/4×114.3 40mm Offset, sold as a single wheel. Tires, lug nuts and fitting are not included.
| Brand | Rotiform |
|---|---|
| Model | R170 DTM |
| Diameter | 17″ |
| Width | 8″ |
| Bolt pattern | 4×100/4×114.3 |
| Offset | 40mm |
| Hub bore | 66.06mm |
| Part number | R170178001+40 |
| Sold as | one wheel |
| Wheel weight | 23.4 lb |
| Load rating (per wheel) | 1,600 lb (725 kg) |
| Backspacing | 6.07 in |
| Construction | Cast Aluminum |
| Lug count | 4 |
| Bolt pattern (inches) | 4x100/4.5 |
| Finish | Silver |
| Center cap part number | CAP PLATE : 36390-05-15GS |
| TPMS sensor compatible | Yes |
| Certification | SAEJ2530 TUV |
Specifications

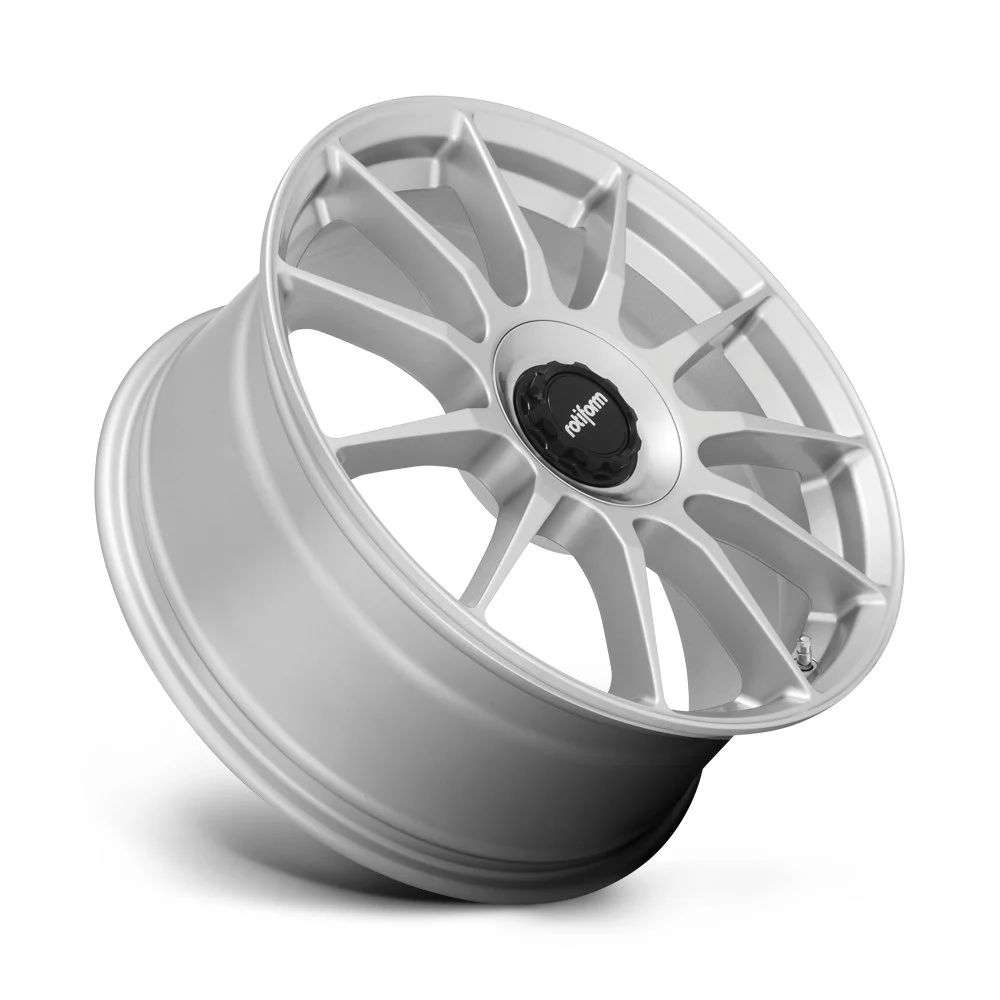

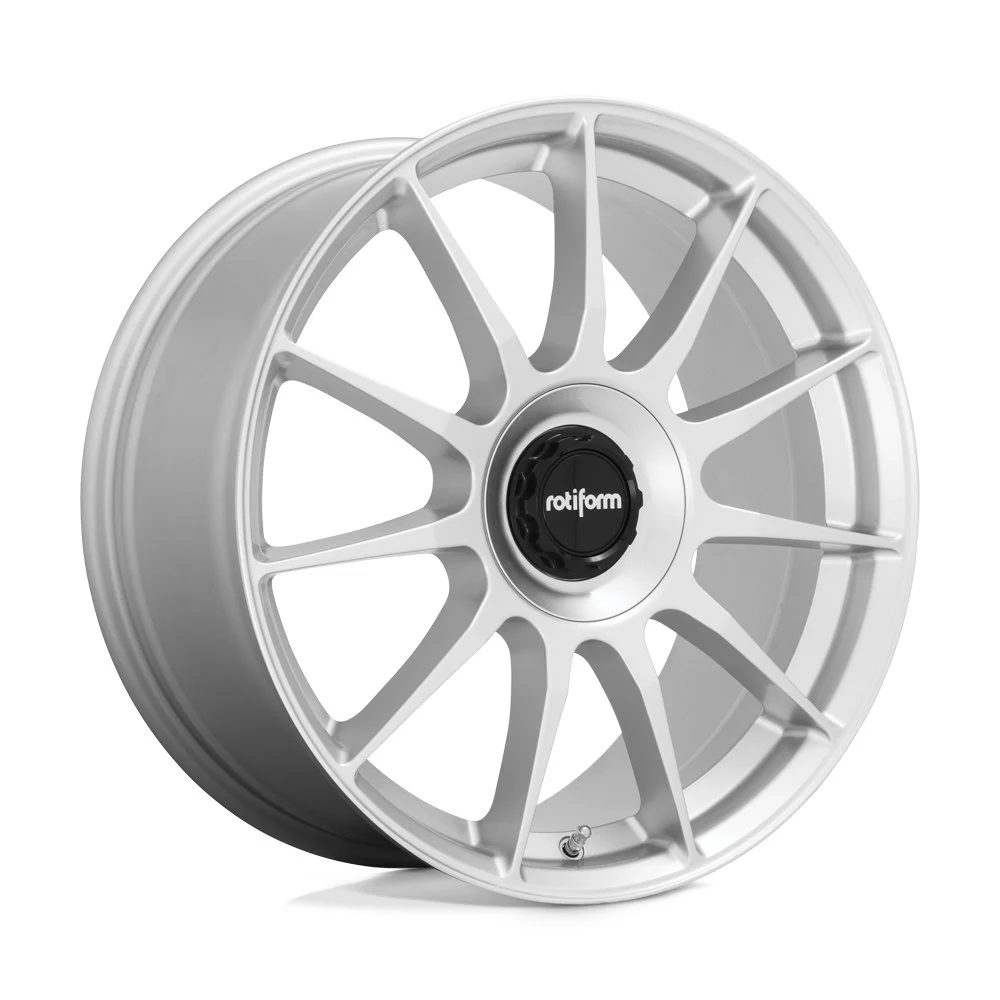

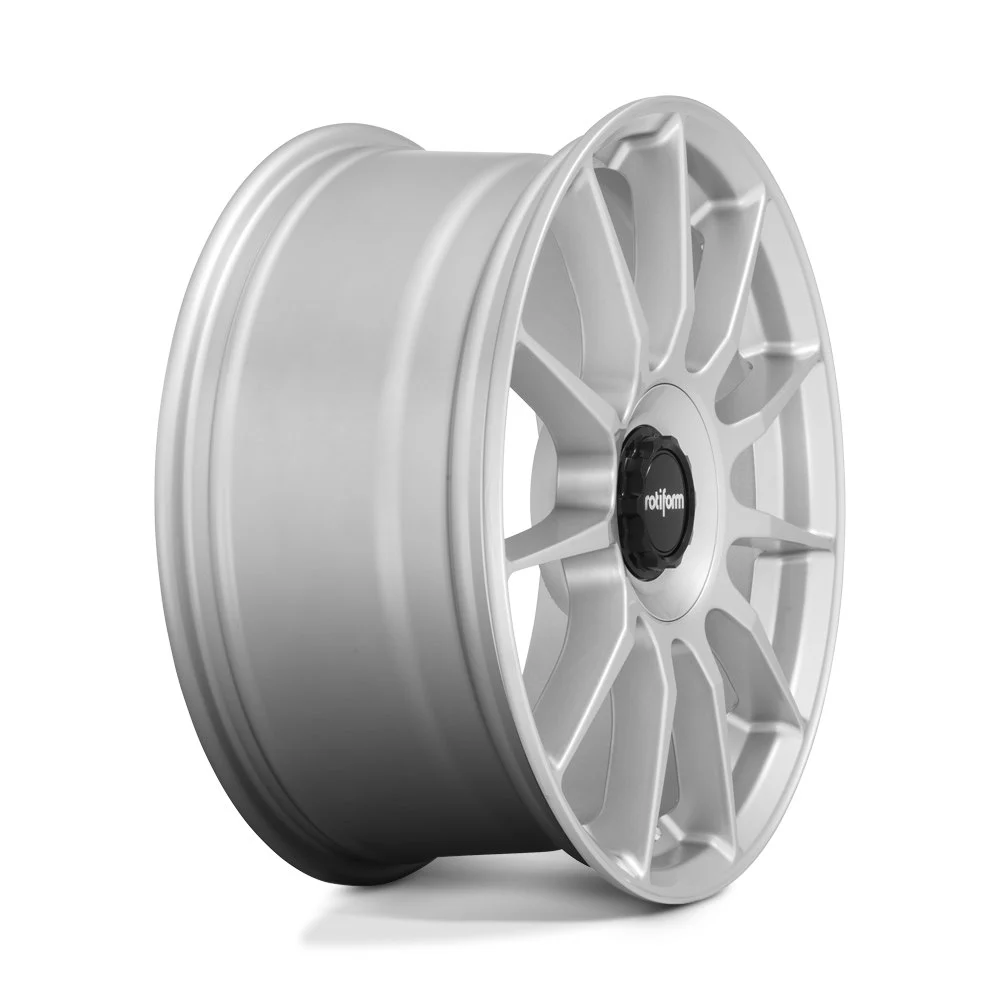

About the photograph. The manufacturer shoots one photograph per wheel style and finish and uses it for every drilling, so the number of lug holes in the picture can differ from this part. This part is 4×100/4×114.3.
Check the fitment numbers against your vehicle. A wheel with the right bolt pattern can still hit a brake caliper or fender on the wrong offset, and a hub bore smaller than your hub will not seat. Call us at 361-334-0324 and we will check it with you before you order.
