US Mags UC147 Flagstaff 22×10.5 5×127 12mm Offset – Anthracite Machined, sold as a single wheel. Tires, lug nuts and fitting are not included.
| Brand | US Mags |
|---|---|
| Model | UC147 Flagstaff |
| Diameter | 22″ |
| Width | 10.5″ |
| Bolt pattern | 5×127 |
| Offset | 12mm |
| Hub bore | 78.1mm |
| Finish | Anthracite Machined |
| Part number | UC147AD22055012 |
| Sold as | one wheel |
| Wheel weight | 37.4 lb |
| Load rating (per wheel) | 1,900 lb (861 kg) |
| Backspacing | 6.22 in |
| Lip depth | 0.26 in |
| Construction | Fusion Forged |
| Build | Forged |
| Lug count | 5 |
| Bolt pattern (inches) | 5x5.0 |
| Center cap part number | 1014-09-06GD |
| TPMS sensor compatible | Yes |
| Certification | SAEJ2530 |
Specifications from Wheel Pros technical data, read 2026-09-24.

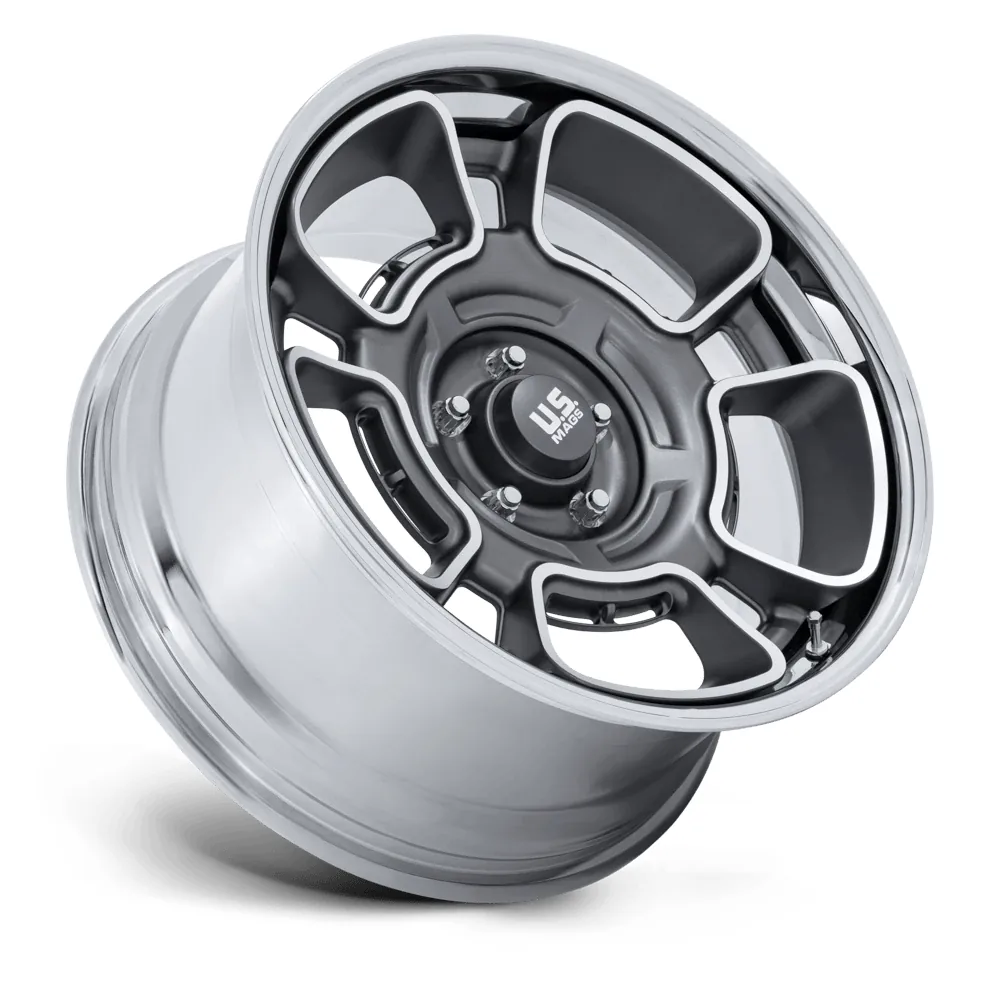

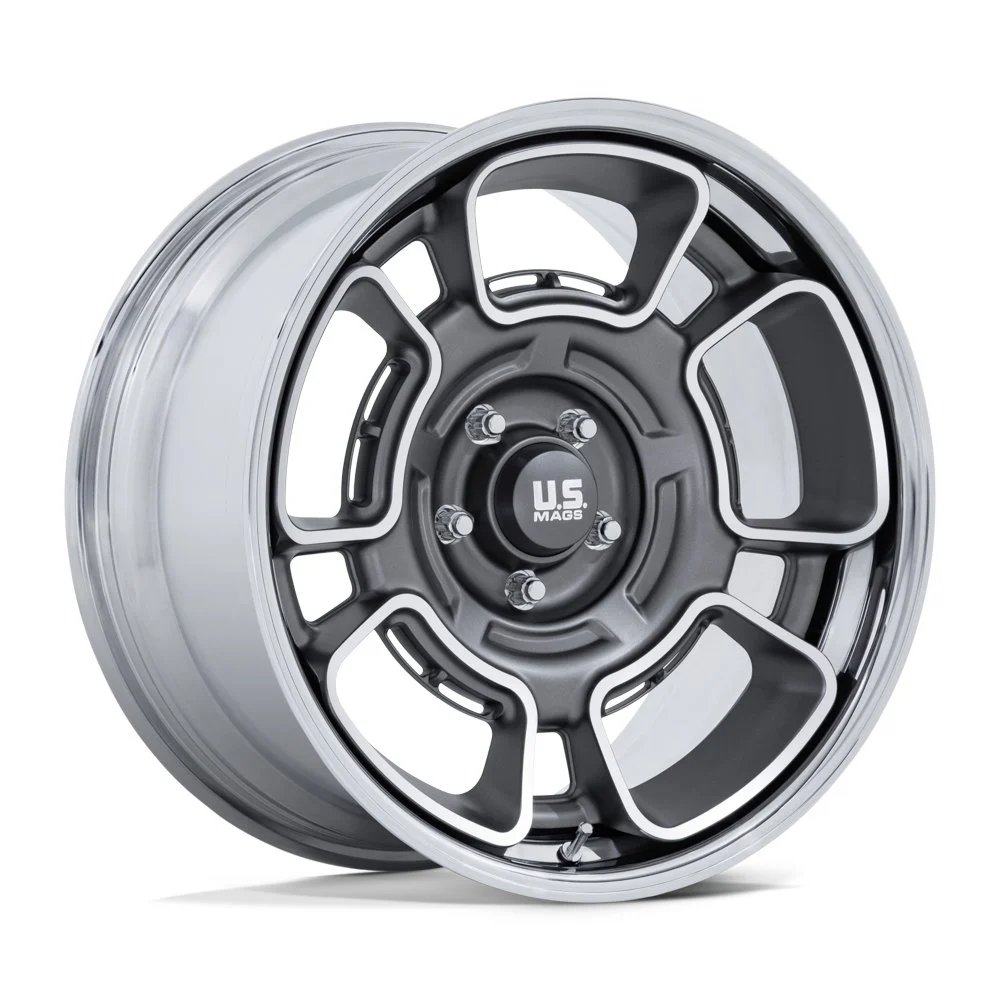

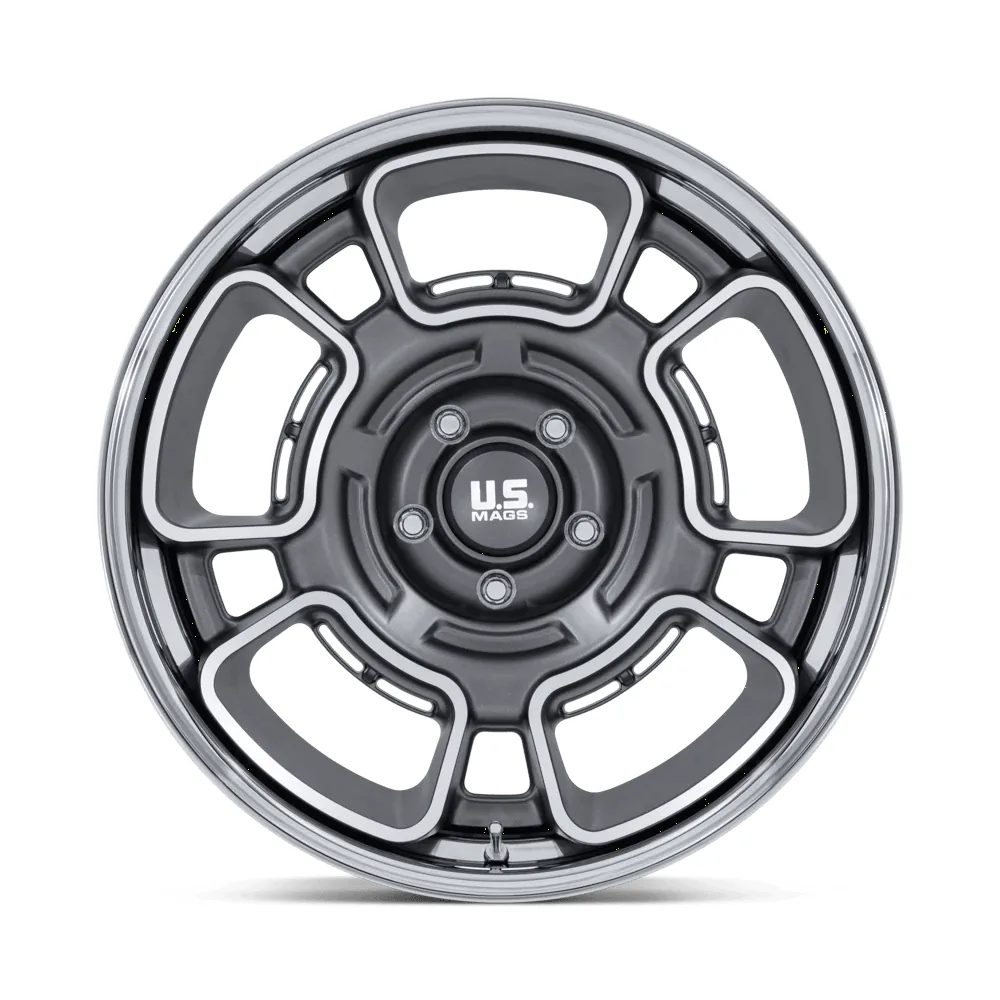

About the photograph. The manufacturer shoots one photograph per wheel style and finish and uses it for every drilling, so the number of lug holes in the picture can differ from this part. This part is 5×127.
Check the fitment numbers against your vehicle. A wheel with the right bolt pattern can still hit a brake caliper or fender on the wrong offset, and a hub bore smaller than your hub will not seat. Call us at 361-334-0324 and we will check it with you before you order.
